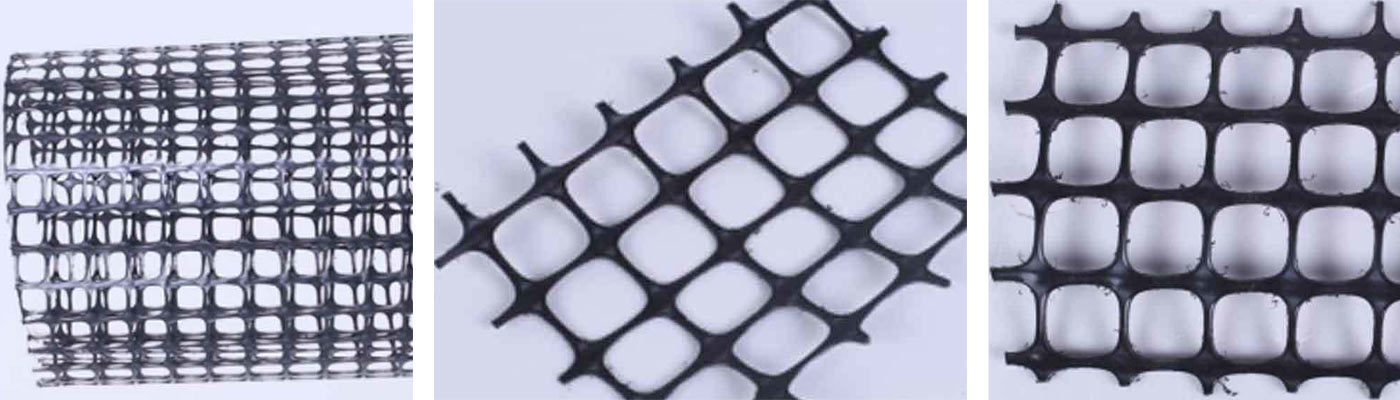

Two-way plastic geogrid
Category：
Bidirectional plastic geogrid is made of polymers through extrusion, plate formation, and punching processes and then stretched longitudinally and transversely. The material has great tensile strength both longitudinally and transversely. This structure can also provide an ideal chain system for more effective force bearing and diffusion in the soil, suitable for foundation reinforcement with large areas of permanent bearing.
Features
1. Increase the bearing capacity of the road (ground) foundation and extend the service life of the road (ground) foundation.
2. Prevent the road (ground) from collapse or cracks, and keep the ground beautiful and neat.
3. Convenient construction, save time and effort, shorten construction period and reduce maintenance costs.
4. Prevent cracks from the culvert.
5. Strengthen soil slopes to prevent soil erosion.
6. Reduce the thickness of the cushion layer and save cost.
7. Support the stable greening environment of grass mesh mats on the slope.
8. It can replace metal mesh and be used for underground false top mesh of coal mines.
Table parameters
The two-way plastic geogrid implements the national standard of the People's Republic of China "GB/T 17689-2008 Geosynthetic Materials Plastic Geogrid", which was released on March 25, 2010 and officially implemented on July 1, 2010.
| Table3 Polypropylene double-pull plastic grille | ||||
| Product specifications | vertical/transverse tensile strength/ (kN/m) | When vertical/horizontal elongation Tensile strength/(kN/m) | When vertical/horizontal elongation Tensile strength/(kN/m) | vertical/horizontal nominal Elongation/% |
| TGSG1515 | ≥15.0 | ≥5.0 | ≥7.0 | ≤15.0/13.0 |
| TGSG2020 | ≥20.0 | ≥7.0 | ≥14.0 | |
| TGSG2525 | ≥25.0 | ≥9.0 | ≥17.0 | |
| TGSG3030 | ≥30.0 | ≥10.5 | ≥21.0 | |
| TGSG3535 | ≥35.0 | ≥12.0 | ≥24.0 | |
| TGSG4040 | ≥40.0 | ≥14.0 | ≥28.0 | |
| TGSG4545 | ≥45.0 | ≥16.0 | ≥32.0 | |
| TGSG5050 | ≥50.0 | ≥17.5 | ≥35.0 | |

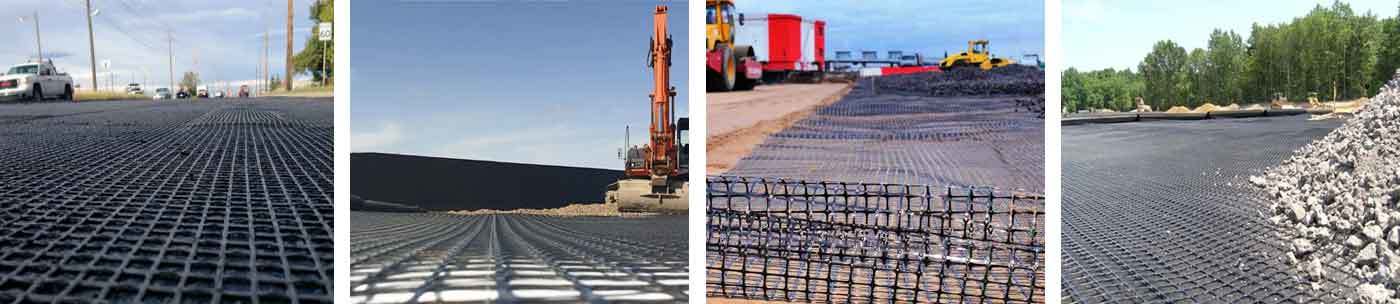

Application Description:
Two-way plastic geogrids are suitable for foundation reinforcement of various embankments and roadbeds, slope protection, cave wall reinforcement, and foundation reinforcement that is permanently carried by large airports, parking lots, docks and freight yards.
1. Suitable for roadbed reinforcement and road surface enhancement on various roads, railways and airports.
2. Suitable for permanent foundation reinforcement such as large parking lots and dock freight yards.
3. Applicable to slope protection of railways and highways.
4. Applicable culvert enhancement.
5. It is suitable for secondary enhancement of soil slopes after the reinforcement of one-way stretched geogrids, further strengthening the soil slopes and preventing soil erosion.
6. Reinforcement of mines and tunnels.
Factory description
Tai'an Jiuzhou Geomaterials Co., Ltd. was founded in 2010 and is headquartered in the north of Taixin Road, Dongdong, Taishan District, Tai'an City, Shandong Province. The factory covers an area of 16,650 square meters. There are 3 factories and 18 production lines. In addition, based on the headquarters, our company has invested in several production lines in other locations, mainly producing and operating geomaterials of various specifications, basalt fiber geogrids, glass fiber geogrids, one-way plastic geogrids, two-way plastic geogrids, steel-plastic geogrids, polyester geogrids, basalt fiber composite ribs, geotextiles, composite geomembranes, bentonite waterproof pads, three-dimensional vegetation networks, geonets, geogrids, geogrids, filter tubes (also known as salt drainage pipes, soft punched corrugated pipes, alkali drainage pipes, drainage pipes or water supply pipes, etc.).
Shipping Packaging
Baled packaging, generally in black woven bags.
Why Choose Us?
1The products can be made completely according to the customer's requirements, and we have our own factory.
2High quality product and good price.
3Good Pre-sale、on sale and after sales service.
4Short delivery time.
5Exported all over the world, with rich experience.
